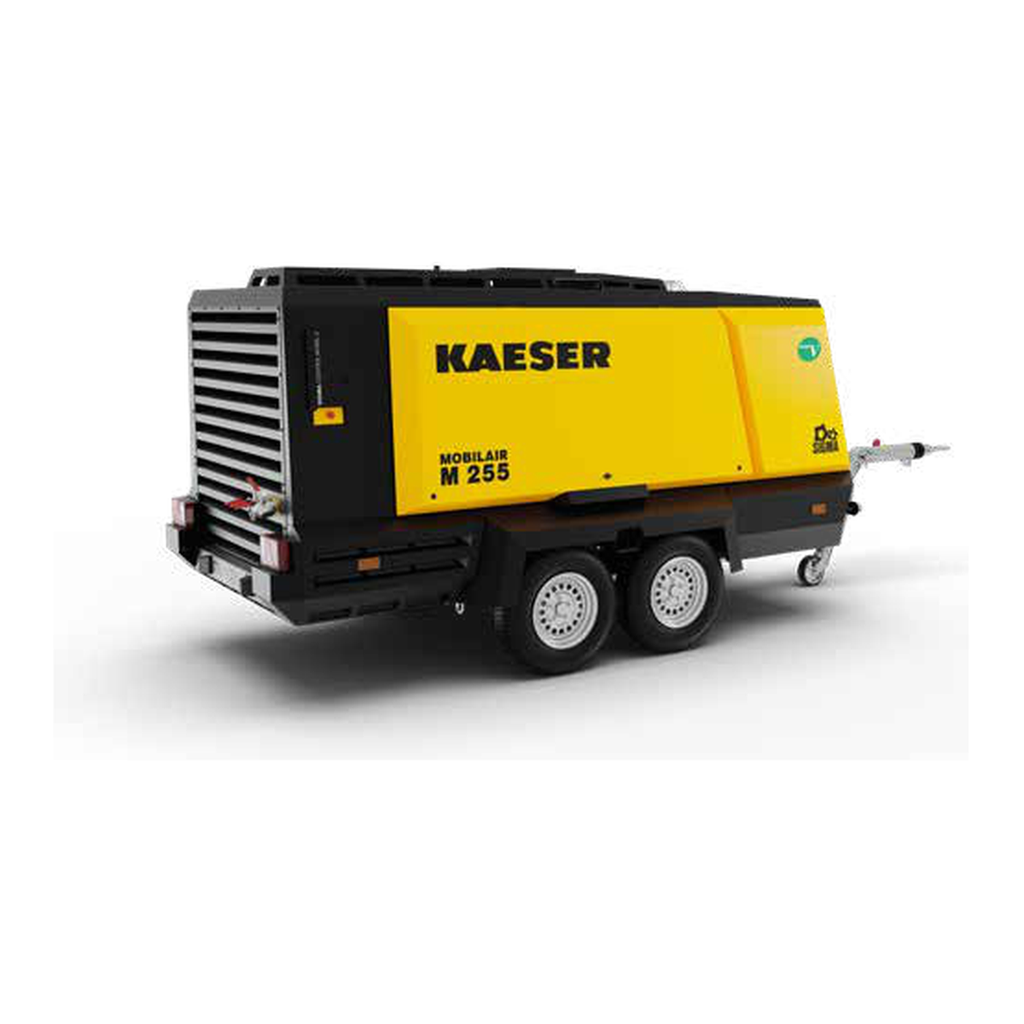

Kaeser MOBILAIR M255 Towable Rotary Screw Air Compressor - 935 CFM, Diesel
Kaeser MOBILAIR M255 — 935 CFM @ 125 psig, Cummins B6.7 Tier 4 Final, 259 BHP, 92.5 gal tank.
935 CFM at 125 psig on a Cummins B6.7, with a 92-gallon tank that keeps it running through a full shift without a fuel truck. Still holds 696 CFM at 205 psig. Pipeline, mining, large-scale blasting and anywhere the alternative is renting three machines and three operators. Stock units ship with the aftercooler and centrifugal separator fitted.
Every MOBILAIR shares the same core engineering. The large, slow-turning SIGMA PROFILE® airend delivers 15–20% more air per gallon of fuel than comparable units, which is the single biggest line item over a machine's life. The anti-frost valve holds discharge air temperature high enough that ambient moisture will not freeze in the tool, protecting air motors and extending tool service life. Heavy-duty chassis and canopy resist corrosion; package airflow is routed to keep the engine cool under load; and the cold-start battery means the unit turns over in winter. Towable models ride on torsion bar suspension with even weight distribution.
Specifications
| Model | M255 |
|---|---|
| Free air delivery | 935 CFM @ 125 psig |
| Engine | Cummins B6.7 Tier 4 Final |
| Fuel | Diesel |
| Brake horsepower | 259 BHP @ full load |
| Full load speed | 1500 - 1900 rpm |
| Off load speed | 1200 rpm |
| Drive type | Gear |
| Fuel tank capacity | 92.5 gal |
| Air discharge outlets | 3 x 3/4" + 1 x 2" |
| Dimensions (L x W x H) | 221 x 79 x 81 in. (towbar) |
| Shipping weight | 7,214 lb (approx.) |
| Sound level | 76 dB(A) max at 23 ft |
| Mounting | Towable |
Free air delivery by pressure
| Pressure | Delivery |
|---|---|
| 125 psig | 935 CFM |
| 145 psig | 858 CFM |
| 175 psig | 777 CFM |
| 205 psig | 696 CFM |
Note: Kaeser stocks this model with the aftercooler / centrifugal separator fitted. The listed price includes that package.
Specifications from the Kaeser MOBILAIR price list effective 07-01-26 and the USMOBILAIR brochure 01/26. EX WORKS shipping point. Prices and specifications subject to change without notice.
Specifications
| Air Treatment Package | Aftercooler + centrifugal separator or Aftercooler + separator + filter or Aftercooler + separator + heater or Aftercooler + separator + heater + filter |
| Cold Weather Package | Standard ambient or Low temperature package (min. ambient -13 °F) |
| Discharge Pressure | Standard pressure or 200 psig |
| Mounting | Towable (standard) or Skid mounted or Stationary (anti-vibration pads) |
