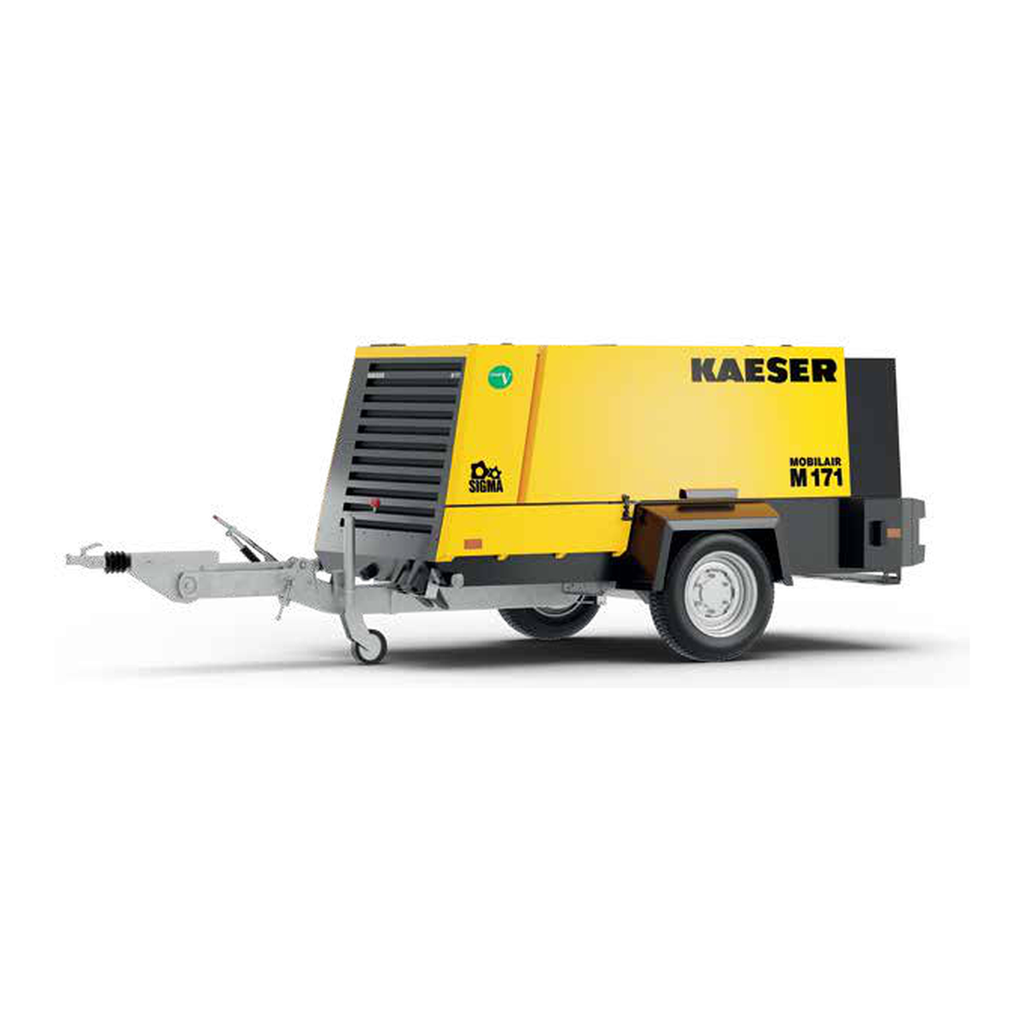

Kaeser MOBILAIR M171 Towable Rotary Screw Air Compressor - 600 CFM, Diesel
Kaeser MOBILAIR M171 — 600 CFM @ 125 psig, Deutz TCD 6.1 L06 Tier 4 Final, 145 BHP, 52 gal tank.
600 CFM at 125 psig, and the six-cylinder Deutz does it at 1450 to 1800 rpm - low enough that the machine is genuinely quiet at 76 dB(A) and sips fuel relative to its output. Off-load drops to 1300 rpm. This is the size for utility contractors running multiple large tools, deep foundation work and sustained abrasive blasting. Stock units ship with the aftercooler and centrifugal separator fitted.
Every MOBILAIR shares the same core engineering. The large, slow-turning SIGMA PROFILE® airend delivers 15–20% more air per gallon of fuel than comparable units, which is the single biggest line item over a machine's life. The anti-frost valve holds discharge air temperature high enough that ambient moisture will not freeze in the tool, protecting air motors and extending tool service life. Heavy-duty chassis and canopy resist corrosion; package airflow is routed to keep the engine cool under load; and the cold-start battery means the unit turns over in winter. Towable models ride on torsion bar suspension with even weight distribution.
Specifications
| Model | M171 |
|---|---|
| Free air delivery | 600 CFM @ 125 psig |
| Engine | Deutz TCD 6.1 L06 Tier 4 Final |
| Fuel | Diesel |
| Brake horsepower | 145 BHP @ full load |
| Full load speed | 1450 - 1800 rpm |
| Off load speed | 1300 rpm |
| Drive type | Gear |
| Fuel tank capacity | 52 gal |
| Air discharge outlets | 3 x 3/4" + 1 x 2" |
| Dimensions (L x W x H) | 200 x 82 x 71 in. (towbar); brochure lists 201 in. |
| Shipping weight | 6,138 lb (approx.) |
| Sound level | 76 dB(A) max at 23 ft |
| Mounting | Towable |
Free air delivery by pressure
| Pressure | Delivery |
|---|---|
| 125 psig | 600 CFM |
| 145 psig | 550 CFM |
| 175 psig | 475 CFM |
| 205 psig | 405 CFM |
Note: Kaeser stocks this model with the aftercooler / centrifugal separator fitted. The listed price includes that package.
Specifications from the Kaeser MOBILAIR price list effective 07-01-26 and the USMOBILAIR brochure 01/26. EX WORKS shipping point. Prices and specifications subject to change without notice.
Specifications
| Air Treatment Package | Aftercooler + centrifugal separator or Aftercooler + separator + filter or Aftercooler + separator + heater or Aftercooler + separator + heater + filter |
| Cold Weather Package | Standard ambient or Low temperature package (min. ambient -13 °F) |
| Discharge Pressure | Standard pressure or 200 psig |
| Mounting | Towable (standard) or Skid mounted or Stationary (anti-vibration pads) |
