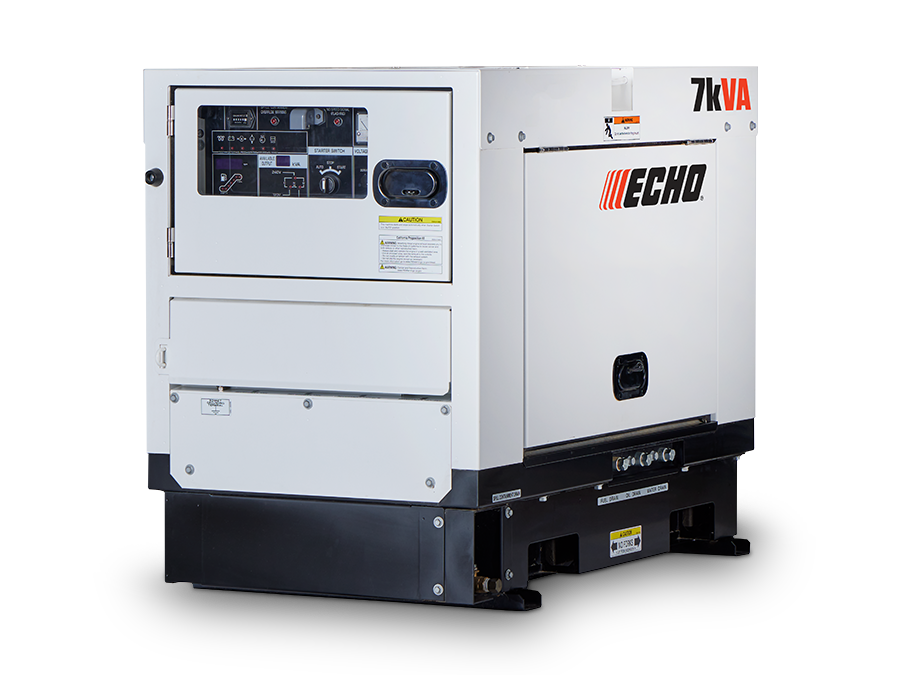

Echo DGK7F Diesel Generator
Echo DGK7F 7 kVA industrial diesel generator — 6.5 kW (1-phase) continuous, 62 dB(A) at 23 ft, Kubota Z482, 14 hr runtime at full load.
Echo DGK7F — 7 kVA Industrial Diesel Generator
The Echo DGK7F delivers 6.5 kW (1-phase) continuous output at 62 dB(A) measured at 23 feet, powered by a Kubota Z482 rated 11.3 hp @ 3600 rpm. The 9.5-gallon tank gives roughly 14 hours of runtime at full load, or about 20 hours at half load.
Specifications
| Continuous output | 6.5 kW (1-phase) |
| Standby output | 7.2 kW |
| Voltage | 120 / 240V, 1-phase |
| Amperage | 54A @ 120V, 27A @ 240V |
| Sound level (no load, 23 ft) | 62 dB(A) |
| Sound level (full load, 23 ft) | 64 dB(A) |
| Engine | Kubota Z482 |
| Engine design | Indirect injection, naturally aspirated |
| Displacement | 29.23 cu. in. (0.479 L) |
| Rated output | 11.3 hp @ 3600 rpm |
| Rated speed | 3600 rpm |
| Starting system | Electric 12V DC |
| Emissions | US EPA Tier 4 Final |
| Fuel capacity | 9.5 gal |
| Fuel consumption (full load) | 0.68 gal/hr |
| Fuel consumption (1/2 load) | 0.47 gal/hr |
| Runtime at full load | ~14 hours |
| Dimensions (L x W x H) | 42.7" x 25.0" x 34.9" |
| Dry weight | 744 lbs |
| Trailered dimensions | 64.94" x 55.0" x 68.21" |
| Trailered dry weight | 1,104 lbs |
Ultra-quiet design
Echo industrial generators are built for sound-sensitive jobsites: air dams and insulated panels double the cooling air path, heavy-gauge door panels and sound-absorbing foam damp the enclosure, and a tuned muffler with an extended exhaust pipe cuts both high and low frequency noise -- without power-robbing auxiliary fans.
Available accessories
- Trailer
- Battery charger
- Fire extinguisher
- Shore power
Sold and serviced by Blue Mountain Reserve — serving Colorado, Wyoming and New Mexico. Contact us for lead times, freight quotes, dealer pricing and startup support.
