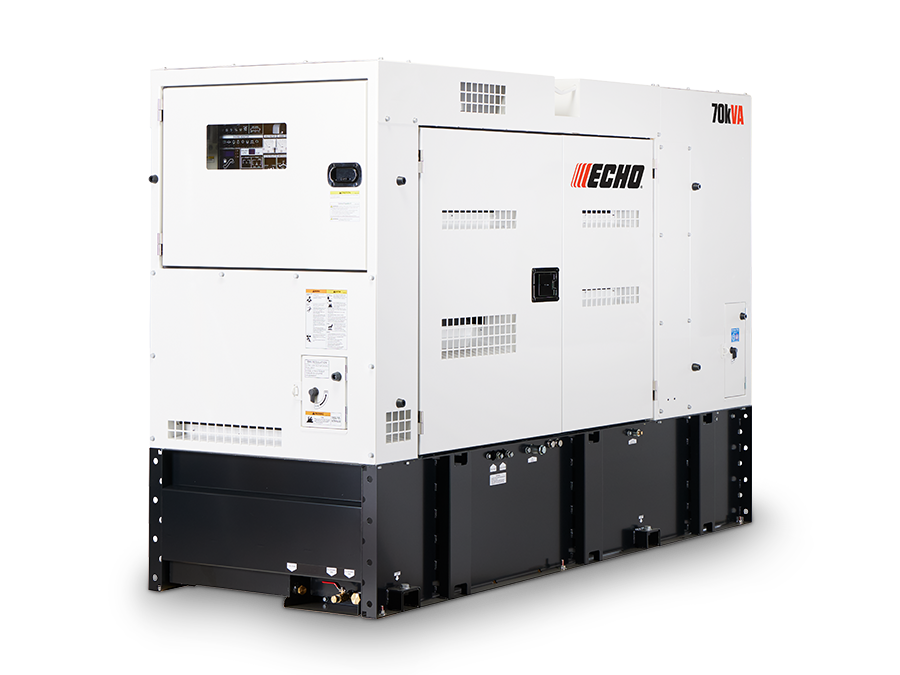

Echo DGK70F — 70 kVA Industrial Diesel Generator
The Echo DGK70F delivers 56 kW (70 kVA) 3-phase / 42 kW 1-phase continuous output at 61 dB(A) measured at 23 feet, powered by a Isuzu 4JJ1X, 4 cylinder rated 95.2 hp (71.0 kW) @ 1800 rpm. The 105.0-gallon tank gives roughly 24 hours of runtime at full load, or about 42 hours at half load.
Specifications
| Continuous output | 56 kW (70 kVA) 3-phase / 42 kW 1-phase |
| Standby output | 61.6 kW (77 kVA) 3-phase |
| Voltage | 240 / 480V 3-phase, 120 / 139 / 240 / 277V 1-phase |
| Amperage | 175A x 2 @ 120V, 168A @ 240V 3-phase, 84A @ 480V |
| Sound level (no load, 23 ft) | 61 dB(A) |
| Sound level (full load, 23 ft) | 62 dB(A) |
| Engine | Isuzu 4JJ1X, 4 cylinder |
| Engine design | Direct injection, turbocharged, intercooler, DOC and SCR |
| Displacement | 183.0 cu. in. (2.999 L) |
| Rated output | 95.2 hp (71.0 kW) @ 1800 rpm |
| Rated speed | 1800 rpm |
| Starting system | Electric 12V DC |
| Emissions | US EPA Tier 4 Final |
| Fuel capacity | 105.0 gal |
| Fuel consumption (full load) | 4.4 gal/hr |
| Fuel consumption (1/2 load) | 2.5 gal/hr |
| Runtime at full load | ~24 hours |
| DEF capacity | 7.4 gal |
| Dimensions (L x W x H) | 102" x 37.5" x 69" |
| Dry weight | 3,898 lbs |

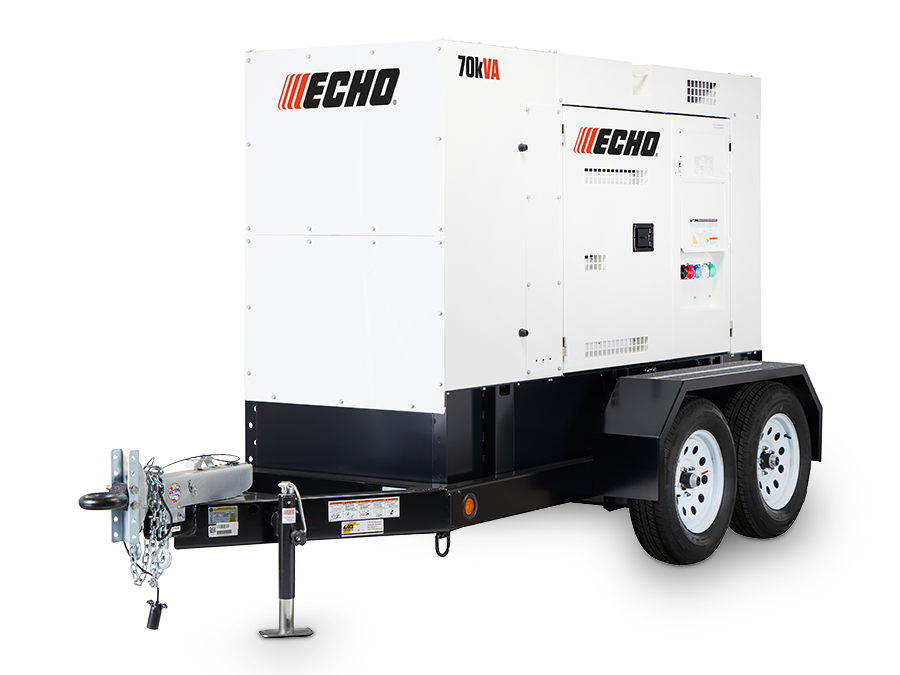

| Trailered dimensions | 156.06" x 68.0" x 84.95" |
| Trailered dry weight | 4,998 lbs |
Ultra-quiet design
Echo industrial generators are built for sound-sensitive jobsites: air dams and insulated panels double the cooling air path, heavy-gauge door panels and sound-absorbing foam damp the enclosure, and a tuned muffler with an extended exhaust pipe cuts both high and low frequency noise -- without power-robbing auxiliary fans.
Simul-Phase®
Simul-Phase® delivers single- and three-phase power at the same time from a split buss, with 120/240V single-phase available at every voltage setting -- no transformer required. Priority trip breakers separate single- and three-phase loads so preferred circuits stay up during an overload.
S.E.T. Smart Emissions Technology™
S.E.T. Smart Emissions Technology™ provides added aftertreatment protection during light or underloaded operation -- the condition that most often fouls Tier 4 emissions systems on standby and rental duty.
Available accessories
- Trailer
- Block heater
- Battery charger
- Auto-start
- Cam-loks
