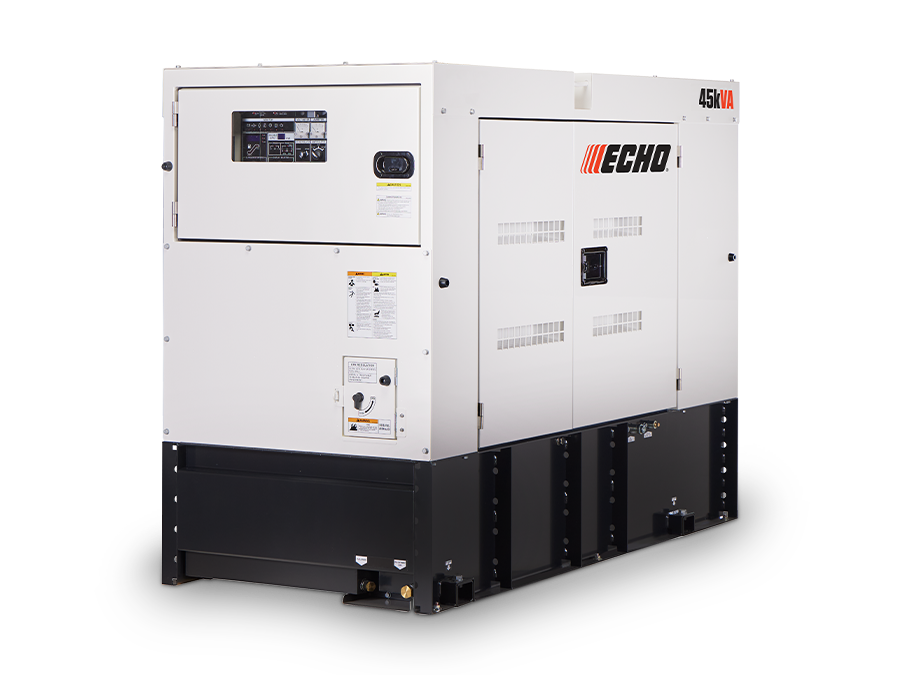

Echo DGK45F — 45 kVA Industrial Diesel Generator
The Echo DGK45F delivers 36 kW (45 kVA) 3-phase / 27 kW 1-phase continuous output at 63 dB(A) measured at 23 feet, powered by a Isuzu 4LE2X, 4 cylinder rated 59 hp @ 1800 rpm. The 79.0-gallon tank gives roughly 28 hours of runtime at full load, or about 53 hours at half load.
Specifications
| Continuous output | 36 kW (45 kVA) 3-phase / 27 kW 1-phase |
| Standby output | 40 kW (50 kVA) 3-phase |
| Voltage | 240 / 480V 3-phase, 120 / 139 / 240V 1-phase |
| Amperage | 112A x 2 @ 120V, 108A @ 240V 3-phase, 54A @ 480V |
| Sound level (no load, 23 ft) | 63 dB(A) |
| Sound level (full load, 23 ft) | 66 dB(A) |
| Engine | Isuzu 4LE2X, 4 cylinder |
| Engine design | Direct injection, turbocharged, intercooler |
| Displacement | 133 cu. in. (2.179 L) |
| Rated output | 59 hp @ 1800 rpm |
| Rated speed | 1800 rpm |
| Starting system | Electric 12V DC |
| Emissions | US EPA Tier 4 Final |
| Fuel capacity | 79.0 gal |
| Fuel consumption (full load) | 2.8 gal/hr |
| Fuel consumption (1/2 load) | 1.5 gal/hr |
| Runtime at full load | ~28 hours |
| Dimensions (L x W x H) | 83" x 37" x 61" |
| Dry weight | 2,634 lbs |

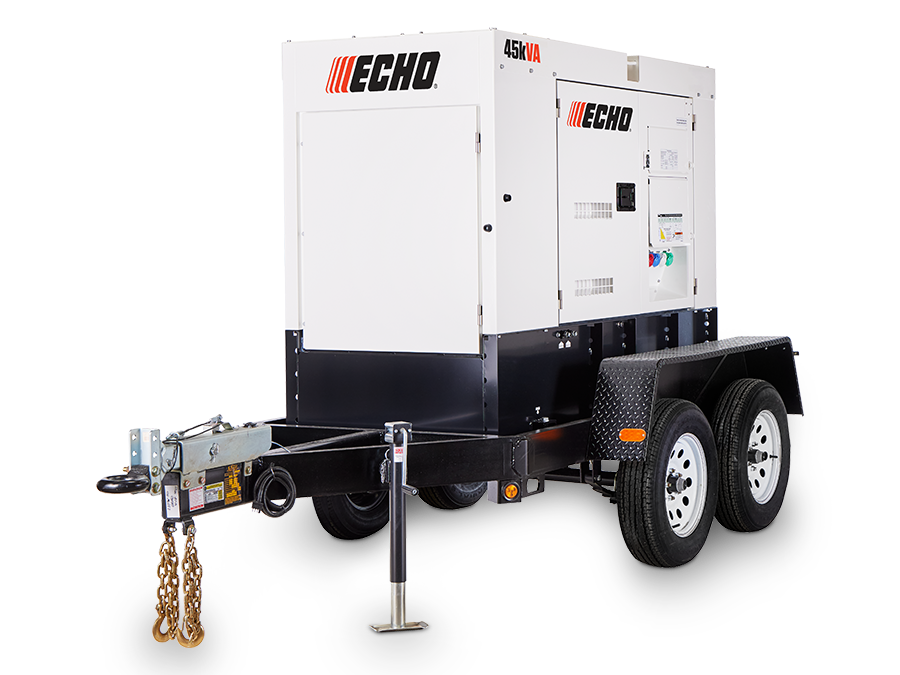

| Trailered dimensions | 154.25" x 70.60" x 83.58" |
| Trailered dry weight | 3,784 lbs |
Ultra-quiet design
Echo industrial generators are built for sound-sensitive jobsites: air dams and insulated panels double the cooling air path, heavy-gauge door panels and sound-absorbing foam damp the enclosure, and a tuned muffler with an extended exhaust pipe cuts both high and low frequency noise -- without power-robbing auxiliary fans.
Simul-Phase®
Simul-Phase® delivers single- and three-phase power at the same time from a split buss, with 120/240V single-phase available at every voltage setting -- no transformer required. Priority trip breakers separate single- and three-phase loads so preferred circuits stay up during an overload.
Available accessories
- Trailer
- Block heater
- Battery charger
- Cam-loks
Sold and serviced by Blue Mountain Reserve — serving Colorado, Wyoming and New Mexico. Contact us for lead times, freight quotes, dealer pricing and startup support.
