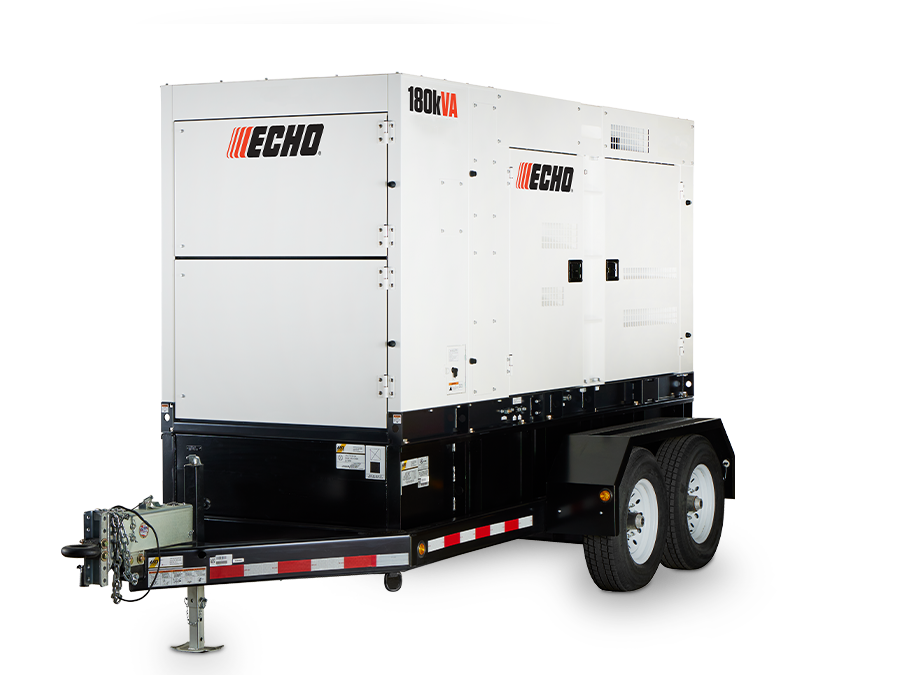

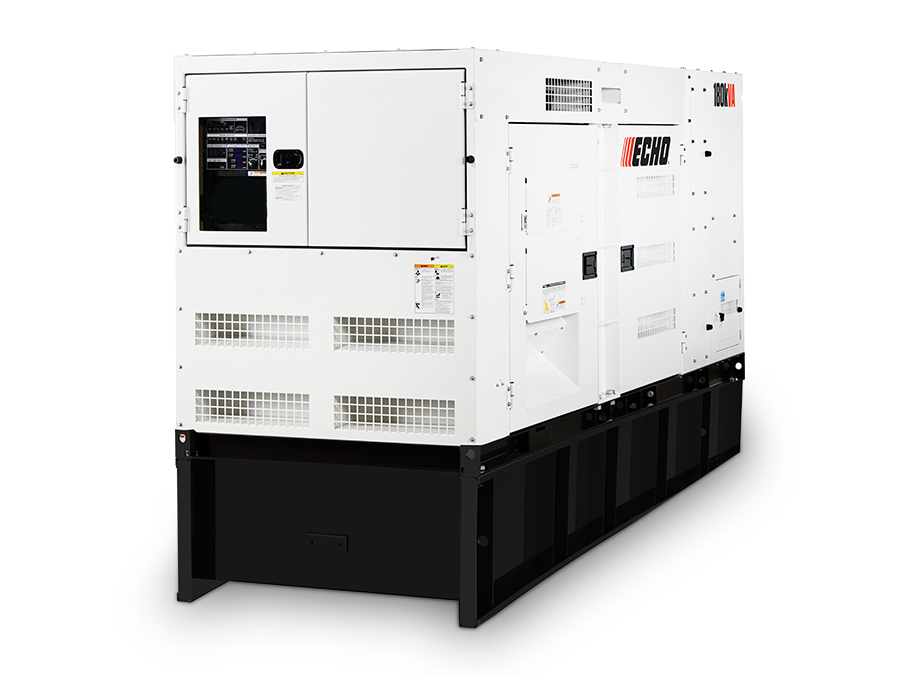

Echo DGK180F — 180 kVA Industrial Diesel Generator
The Echo DGK180F delivers 144 kW (180 kVA) 3-phase / 108 kW 1-phase continuous output at 65 dB(A) measured at 23 feet, powered by a Isuzu 6HK1 rated 227.3 hp (169.5 kW) @ 1800 rpm. The 275.0-gallon tank gives roughly 27 hours of runtime at full load, or about 49 hours at half load.
Note: this model ships Shindaiwa / Kwiet Power branded. Shindaiwa and Echo are the same manufacturer — Shindaiwa generators are built in Japan and distributed in the US by ECHO Incorporated.
Specifications
| Continuous output | 144 kW (180 kVA) 3-phase / 108 kW 1-phase |
| Standby output | 158 kW 3-phase |
| Voltage | 208 / 240 / 480V 3-phase, 120 / 240V 1-phase |
| Amperage | 500A @ 208V, 433A @ 240V, 216A @ 480V (3-phase) |
| Sound level (no load, 23 ft) | 65 dB(A) |
| Sound level (full load, 23 ft) | 65 dB(A) |
| Engine | Isuzu 6HK1 |
| Engine design | Direct injection, turbocharged, DOC and SCR |
| Displacement | 475 cu. in. (7.790 L) |
| Rated output | 227.3 hp (169.5 kW) @ 1800 rpm |
| Rated speed | 1800 rpm |
| Starting system | Electric 24V DC |
| Emissions | US EPA Tier 4 Final |
| Fuel capacity | 275.0 gal |
| Fuel consumption (full load) | 10.3 gal/hr |
| Fuel consumption (1/2 load) | 5.6 gal/hr |
| Runtime at full load | ~27 hours |
| DEF capacity | 14.6 gal |
| Dimensions (L x W x H) | 143.7" x 52.8" x 87.8" |
| Dry weight | 9,370 lbs |
Ultra-quiet design
Echo industrial generators are built for sound-sensitive jobsites: air dams and insulated panels double the cooling air path, heavy-gauge door panels and sound-absorbing foam damp the enclosure, and a tuned muffler with an extended exhaust pipe cuts both high and low frequency noise -- without power-robbing auxiliary fans.
Simul-Phase®
Simul-Phase® delivers single- and three-phase power at the same time from a split buss, with 120/240V single-phase available at every voltage setting -- no transformer required. Priority trip breakers separate single- and three-phase loads so preferred circuits stay up during an overload.
S.E.T. Smart Emissions Technology™
S.E.T. Smart Emissions Technology™ provides added aftertreatment protection during light or underloaded operation -- the condition that most often fouls Tier 4 emissions systems on standby and rental duty.
Available accessories
- Trailer
- Block heater
- Battery charger
- Cam-loks
Sold and serviced by Blue Mountain Reserve — serving Colorado, Wyoming and New Mexico. Contact us for lead times, freight quotes, dealer pricing and startup support.
