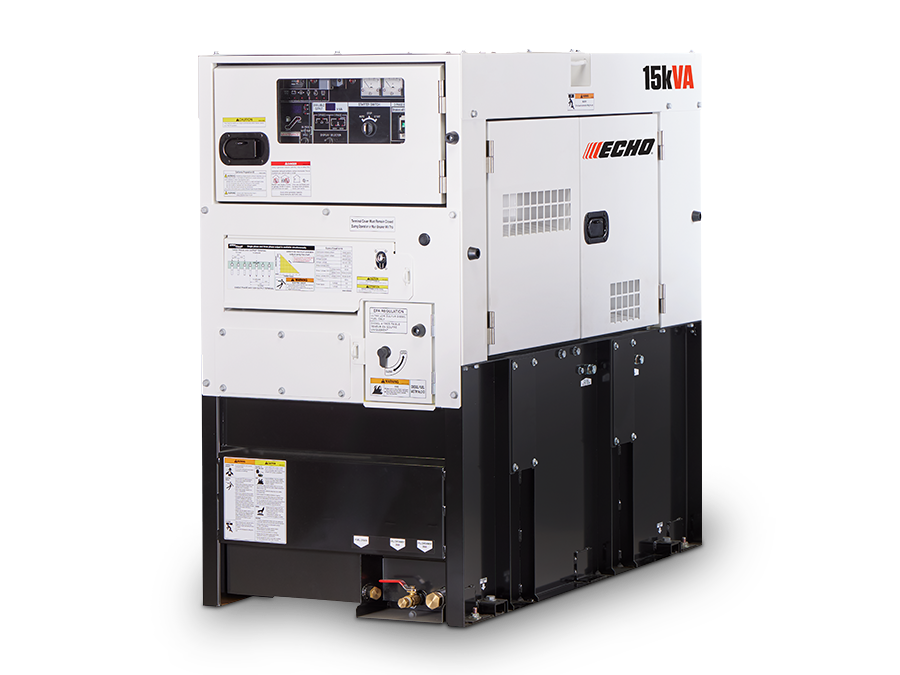

Echo DGK15FL — 15 kVA Industrial Diesel Generator
The Echo DGK15FL delivers 12 kW (15 kVA) 3-phase / 12 kW 1-phase continuous output at 65 dB(A) measured at 23 feet, powered by a Kubota D902, 3 cylinder rated 20.7 hp @ 3600 rpm. The 60.0-gallon tank gives roughly 48 hours of runtime at full load, or about 71 hours at half load.
Specifications
| Continuous output | 12 kW (15 kVA) 3-phase / 12 kW 1-phase |
| Standby output | 13.2 kW (16.5 kVA) 3-phase |
| Voltage | 240 / 208V 3-phase, 120 / 240V 1-phase |
| Amperage | 50.0A x 2 @ 120V, 36.1A @ 240V 3-phase |
| Sound level (no load, 23 ft) | 65 dB(A) |
| Sound level (full load, 23 ft) | 67 dB(A) |
| Engine | Kubota D902, 3 cylinder |
| Engine design | Indirect injection |
| Displacement | 54.8 cu. in. (0.898 L) |
| Rated output | 20.7 hp @ 3600 rpm |
| Rated speed | 3600 rpm |
| Starting system | Electric 12V DC |
| Emissions | US EPA Tier 4 Final |
| Fuel capacity | 60.0 gal |
| Fuel consumption (full load) | 1.24 gal/hr |
| Fuel consumption (1/2 load) | 0.85 gal/hr |
| Runtime at full load | ~48 hours |
| Dimensions (L x W x H) | 52.1" x 27.8" x 50.2" |
| Dry weight | 1,190 lbs |
| Trailered dimensions | 101.34" x 55.0" x 55.9" |
| Trailered dry weight | 1,540 lbs |
Ultra-quiet design
Echo industrial generators are built for sound-sensitive jobsites: air dams and insulated panels double the cooling air path, heavy-gauge door panels and sound-absorbing foam damp the enclosure, and a tuned muffler with an extended exhaust pipe cuts both high and low frequency noise -- without power-robbing auxiliary fans.
Simul-Phase®
Simul-Phase® delivers single- and three-phase power at the same time from a split buss, with 120/240V single-phase available at every voltage setting -- no transformer required. Priority trip breakers separate single- and three-phase loads so preferred circuits stay up during an overload.
Available accessories

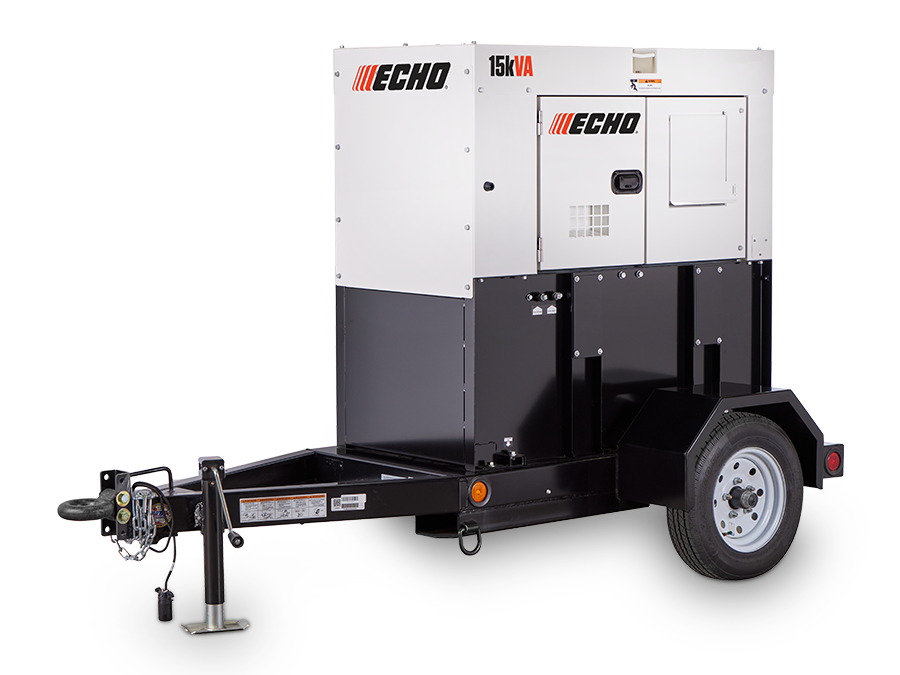

- Trailer
- Block heater
- Battery charger
Sold and serviced by Blue Mountain Reserve — serving Colorado, Wyoming and New Mexico. Contact us for lead times, freight quotes, dealer pricing and startup support.
