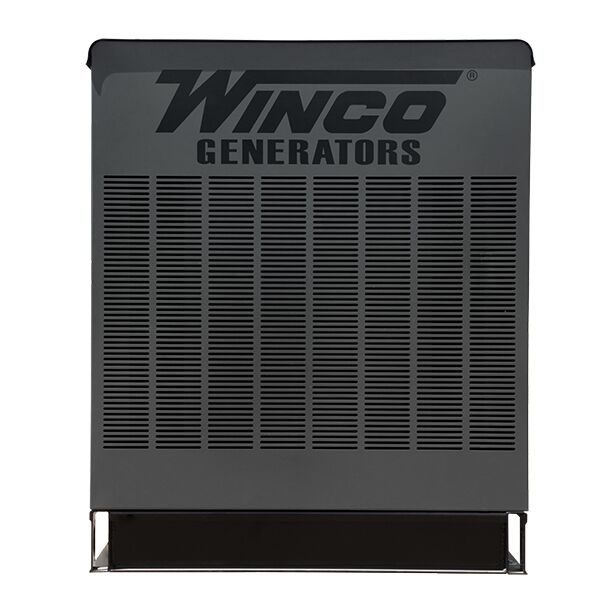

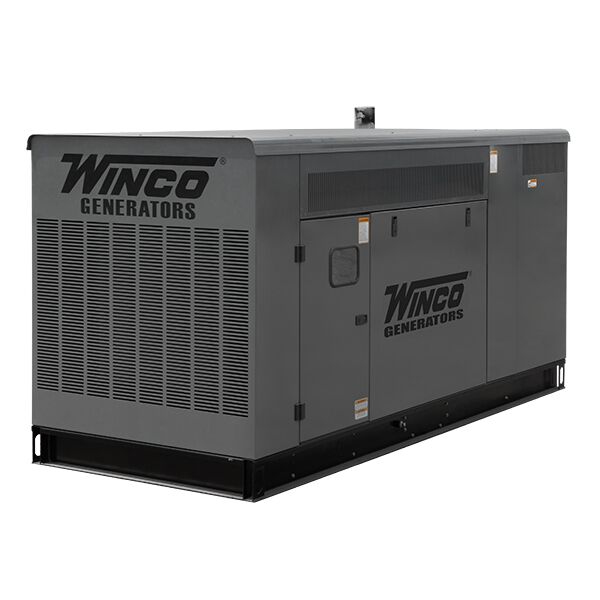

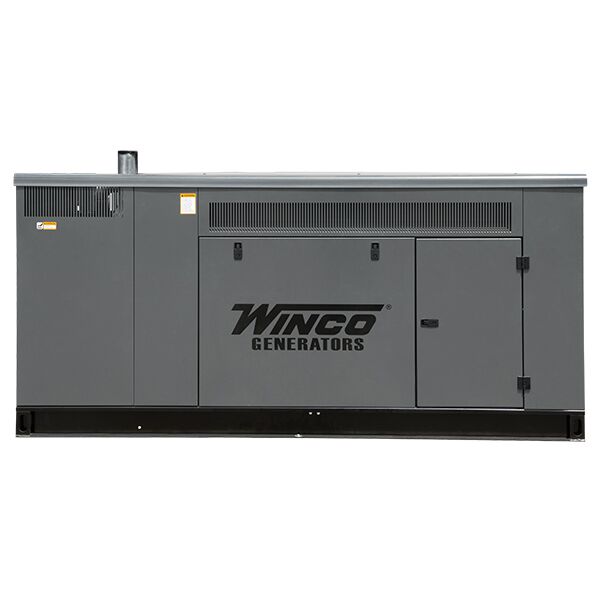

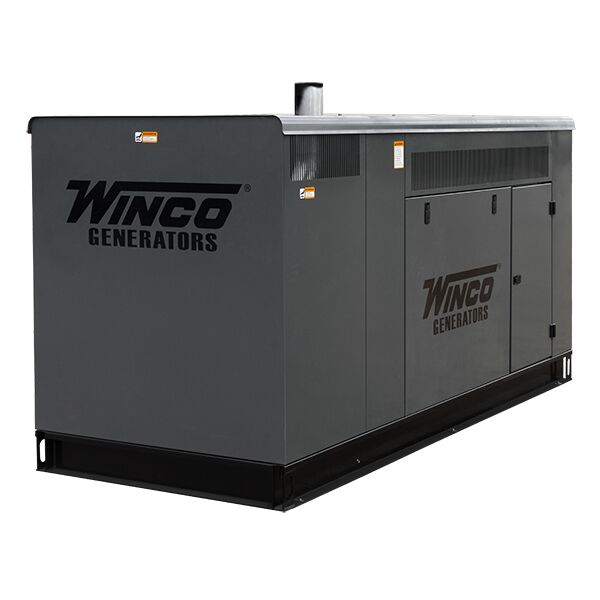

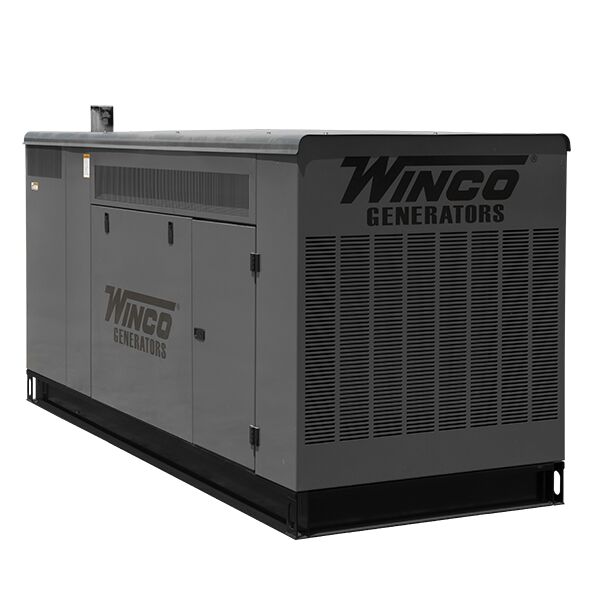

WINCO DR90F4
The new redigned DR90F4. We have taken everything great about our previous DR90F4 model and pakaged it in a new housing.
Documents
Contact us for pricing. This product is configured to your specifications. Request a quote and our team will help you build the right solution.
Product Features
Product Description
Specifications
| Watts | 120/240 1-Ph: 86000120/208 3-Ph: 90000120/240 3-Ph: 90000277/480 3-Ph: 90000 |
| Amps | 120/240 1-Ph: 358120/208 3-Ph: 300120/240 3-Ph: 250277/480 3-Ph: 125 |
| Voltage Output | 120/208 Volt Three Phase, 120/240 Volt Single Phase, 120/240 Volt Three Phase, 277/480 Volt Three Phase, 346/600 Volt Three Phase |
| Voltage Regulation | AVR (Automatic Voltage Regulator) |
| Engine Brand | FPT(Case Industrial) |
| Fuel | Diesel |
| Emissions | EPA Standby |
| Dimensions | Open Skid: 96" x 40" x 47.7"Enclosed: 106.7" x 42.73" x 59.2" |
| Weight | 3100 lbs. |
| Unit Warranty | 1 yr/1000 hrs |
| Assembled In | USA |
