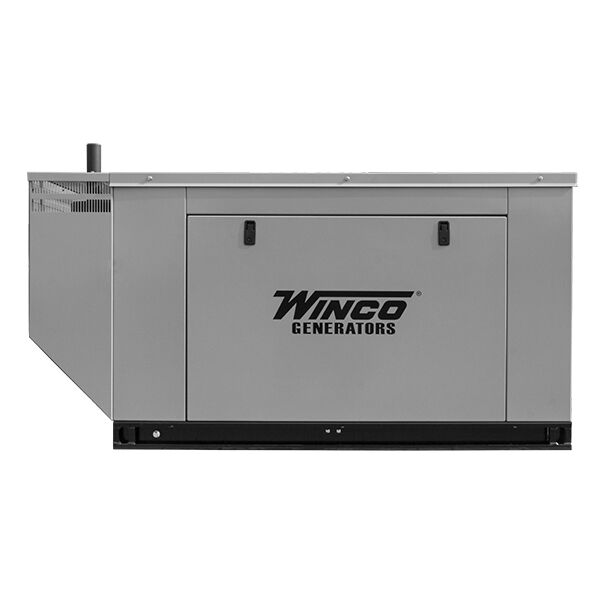

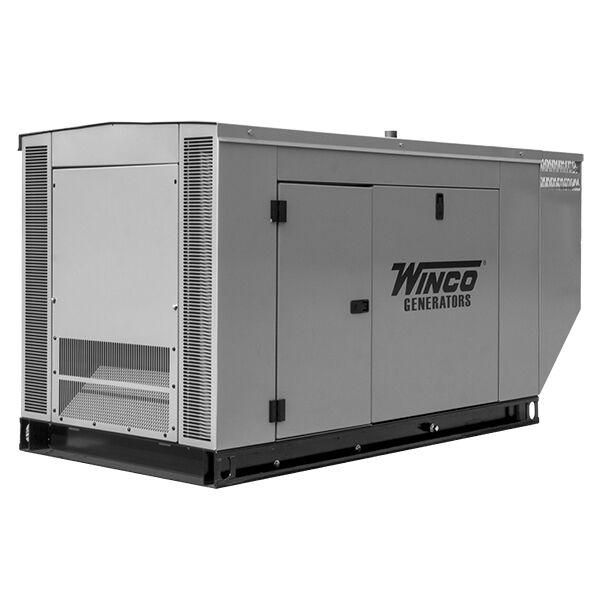

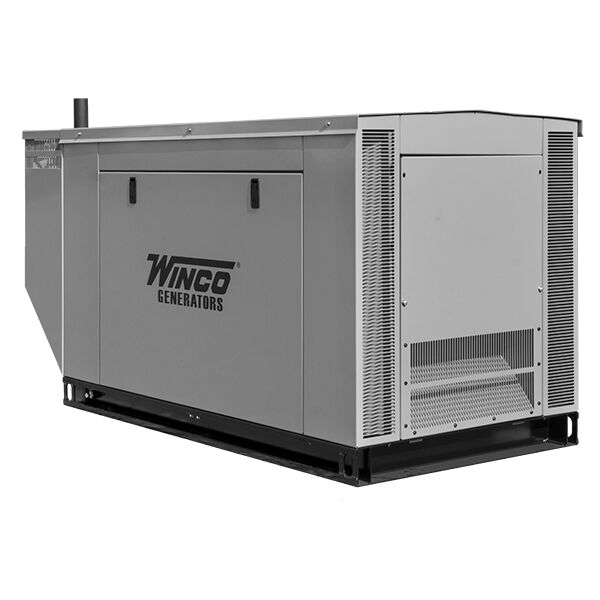

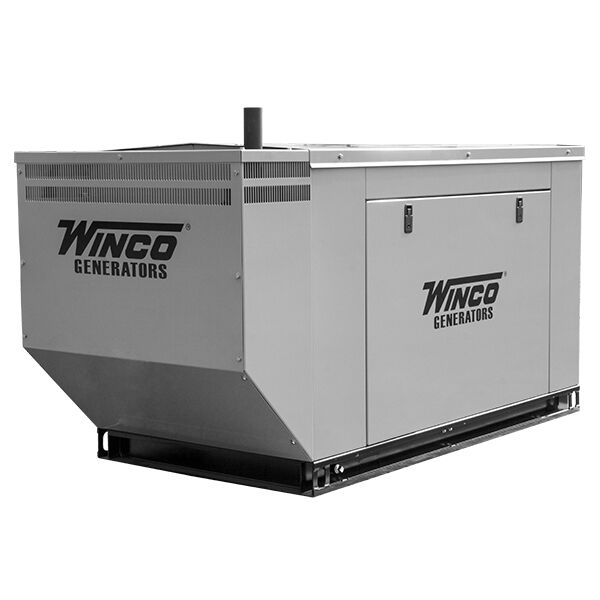

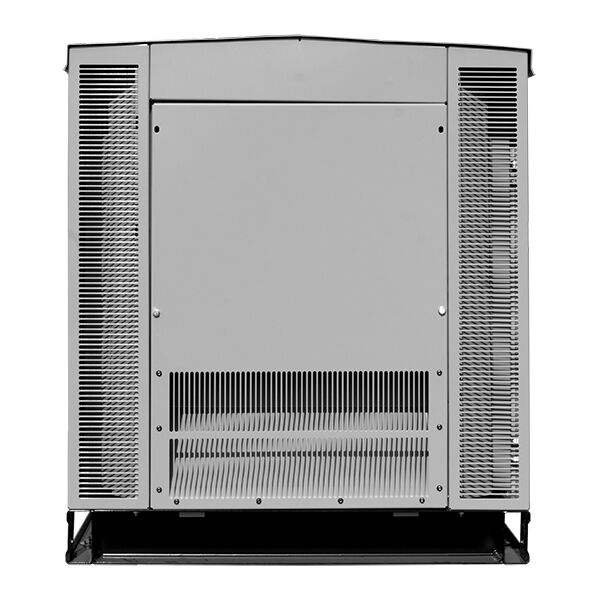

WINCO DR12I4
We have redesigned our DR12I4 with an Isuzu 3CE1 engine for standby and prime applications.
Documents
Contact us for pricing. This product is configured to your specifications. Request a quote and our team will help you build the right solution.
Product Features
Product Description
Specifications
| Watts | Standby: 12,500Prime: 11,250 |
| Amps - Standby | 120/240 1-Ph: 52120/208 3-Ph: 43120/240 3-Ph: 37277/480 3-Ph: 18 |
| Amps - Prime | 120/240 1-Ph: 46120/208 3-Ph: 38120/240 3-Ph: 33277/480 3-Ph: 16 |
| Voltage Regulation | AVR (Automatic Voltage Regulator) |
| Voltage Output | 120/208 Volt Three Phase, 120/240 Volt Single Phase, 120/240 Volt Three Phase, 277/480 Volt Three Phase |
| Engine Brand | Isuzu |
| Fuel | Diesel |
| Emissions | EPA Prime, EPA Standby |
| Dimensions | Open Skid: 63" x 34" x 33.71"Enclosed: 74.93" x 34" x 44.81" |
| Weight | 1790 lbs. |
| Unit Warranty | Standby: 2 yr/2000 hrsPrime: 1 yr/2000 hrs |
| Assembled In | USA |
