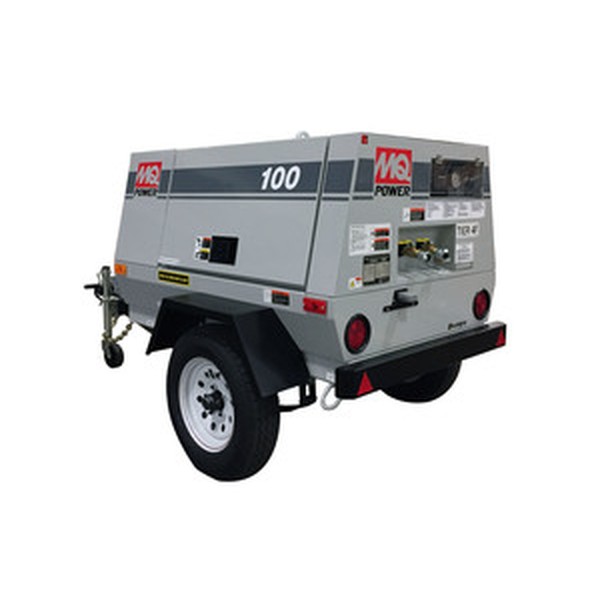

Multiquip MQ DIS100SSK4F 95 CFM Towable Air Compressor Kubota Tier 4 Final
Overview
The Multiquip DIS100SSK4F is a 95 CFM towable rotary screw air compressor powered by a 24.4 hp Kubota D1005-E4B diesel engine (EPA Tier 4 Final). Weather-resistant, lockable, sound-attenuated steel housing for safe unattended operation. Free shipping.
Compressor
| Type | Rotary Screw |
| Rated Delivery | 95 CFM (2.8 m3/min) |
| Rated Operating Pressure | 100 PSI (6.9 BAR) |
| Minimum Operating Pressure | 73 PSI (5.0 BAR) |
| Maximum Operating Pressure | 120 PSI (8.3 BAR) |
| Air Service Connections | Two 3/4 in NPT |
| Cooling System | Oil to Air |
| Sound Level (full load, 23 ft) | 70 dB(A) |
| Oil Capacity | 3.3 gal (12.5 L) |
Engine
| Make / Model | Kubota D1005-E4B |
| Emissions | Tier 4 Final Certified |
| Design | 4-cycle, water-cooled, direct injection |
| Starting System | Electric |
| Gross Power | 24.4 bhp (18.19 kW) |
| Fuel Tank Capacity | 10.6 gal (40 L) |
Trailer & Dimensions
| Gross Axle Weight Rating | 2500 lb (1334 kg) |
| Tire Size | ST175/80D13 LR-C |
| Tow Bar | Bolt-on "A" Frame |
| Jack Stand | Caster |
| Overall (L x W x H) | 112.20 x 58.07 x 51.57 in |
| Operating Weight | 1631 lb (740 kg) |
| Shipping Weight | 1521 lb (690 kg) |
