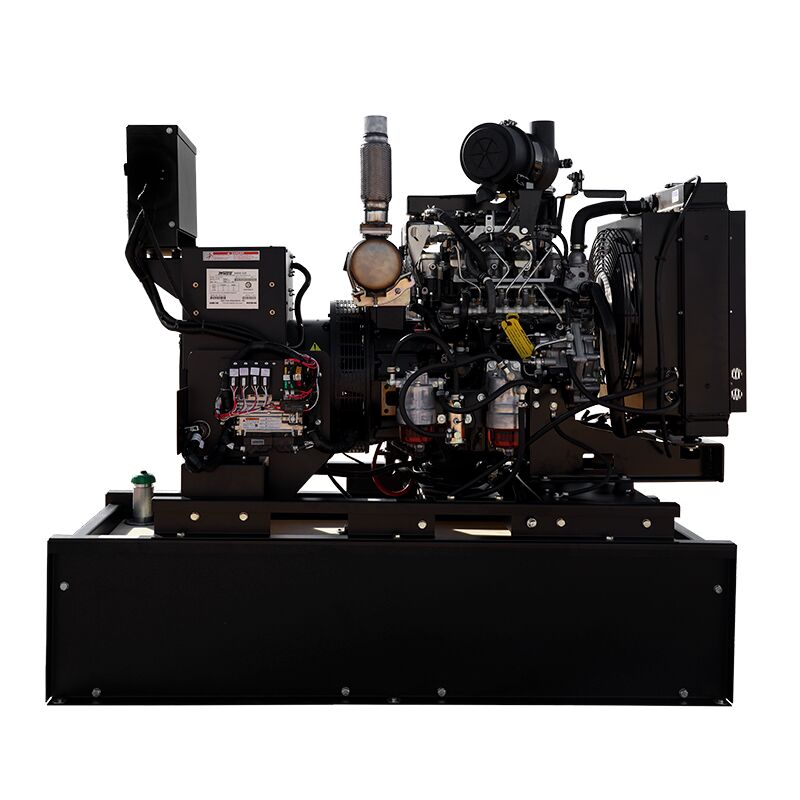

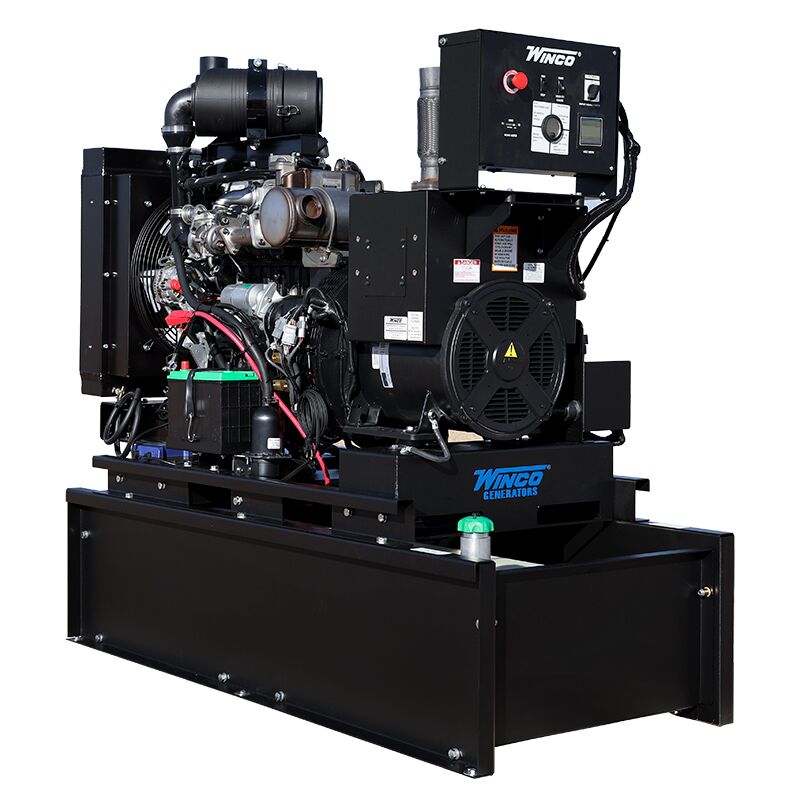

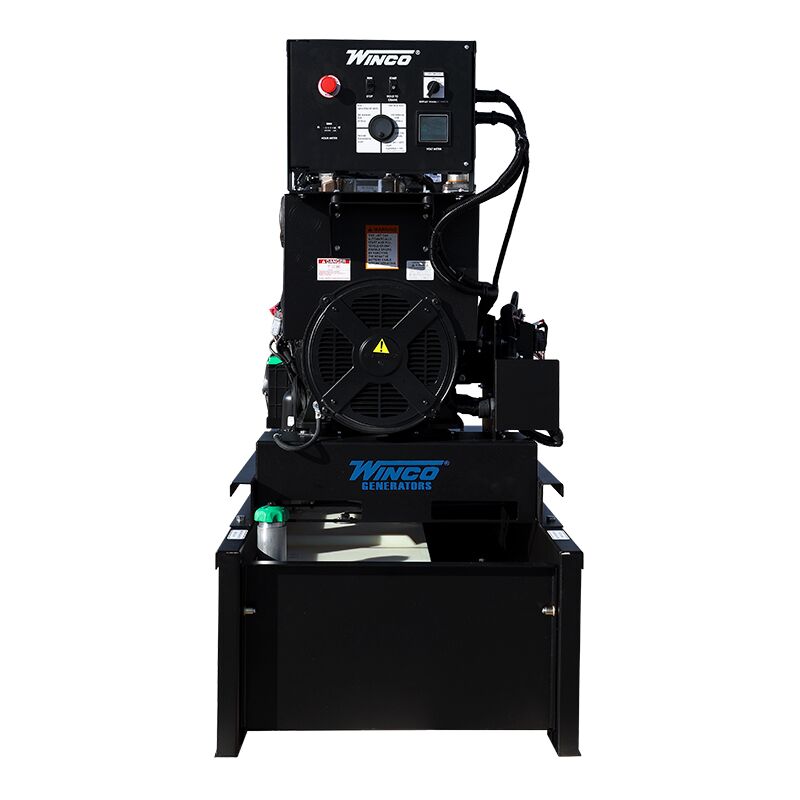

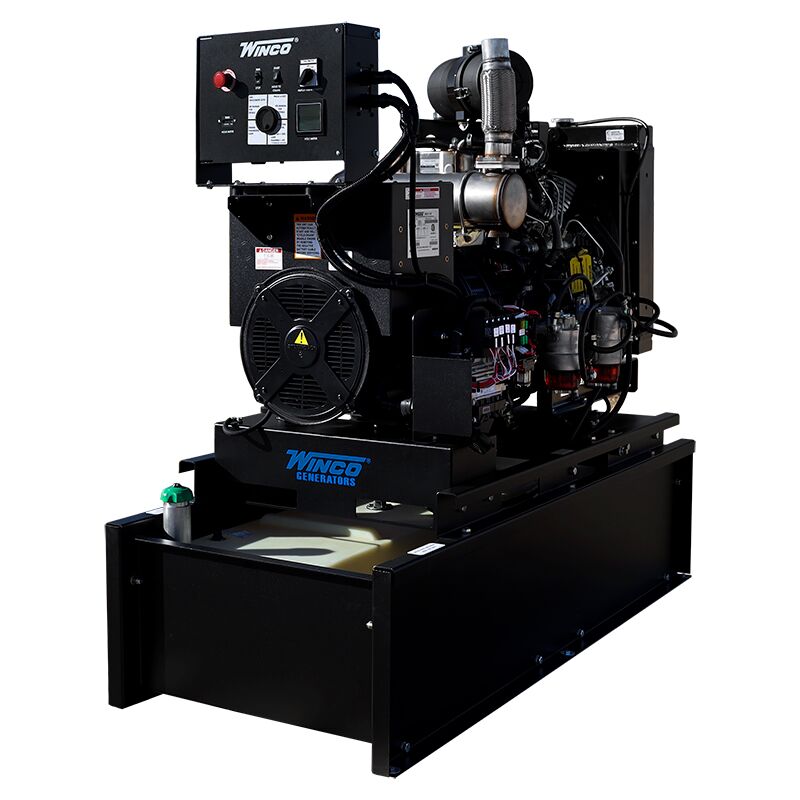

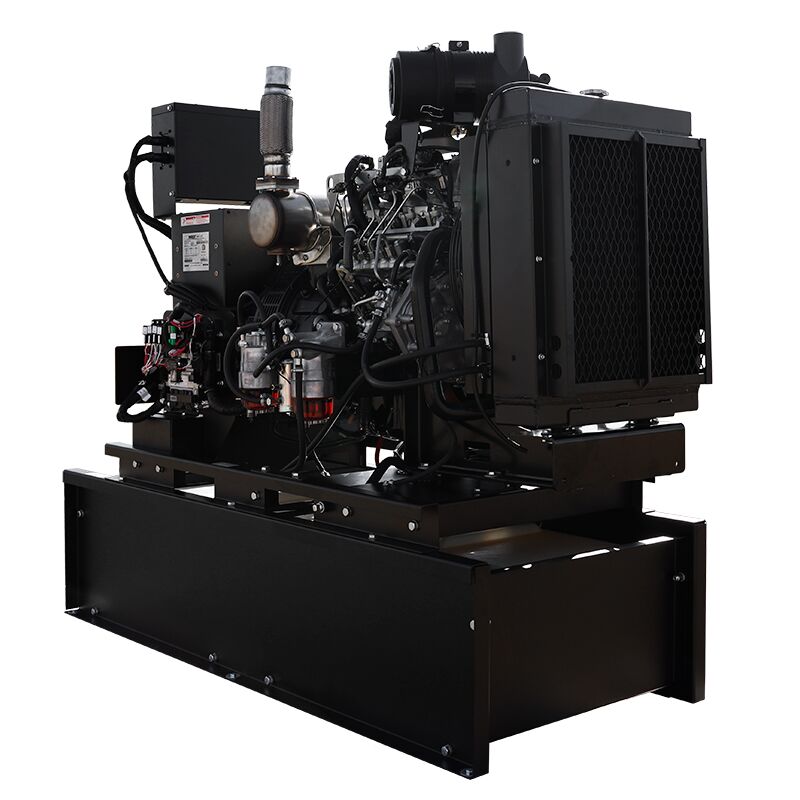

WINCO DE23 GEN4
Isuzu 4LE2T 2.2 Liter Engine
Rocker Manual Start
Stamford Generator End
Powder Coat Paint
UL2200 Listed
100% Load Tested
Contact us for pricing. This product is configured to your specifications. Request a quote and our team will help you build the right solution.
Product Features
Isuzu 4LE2T 2.2 Liter Engine
Rocker Manual Start
Stamford Generator End
Powder Coat Paint
UL2200 Listed
100% Load Tested
Specifications
| Standby Watts | 120/240 1-PH: 20,000120/208 3-PH: 23,000120/240 3-PH: 23,000277/480 3-PH: 23,000 |
| Prime Watts | 120/240 1-PH: 19,800120/208 3-PH: 20,700120/240 3-PH: 20,700277/480 3-PH: 20,700 |
| Standby Amps | 120/240 1-PH: 91120/208 3-PH: 79120/240 3-PH: 69277/480 3-PH: 34 |
| Prime Amps | 120/240 1-PH: 82120/208 1-PH: 71120/240 3-PH: 62277/480 3-PH: 31 |
| Voltage Output | 120/208 Volt Three Phase, 120/240 Volt Single Phase, 120/240 Volt Three Phase, 277/480 Volt Three Phase |
| Voltage Regulation | AVR – AS440 +/- 1% |
| Engine | Brand: IsuzuModel: 4LE2T |
| Fuel | Diesel |
| Emissions | Tier IV Final |
| Dimensions | 66.7" x 33.6" x 43.4" |
| Weight | Without Tank: 1,542 lbsWith Tank: 1,833 lbs |
| Unit Warranty | 1 year/2000 hours |
| Assembled In | USA |
