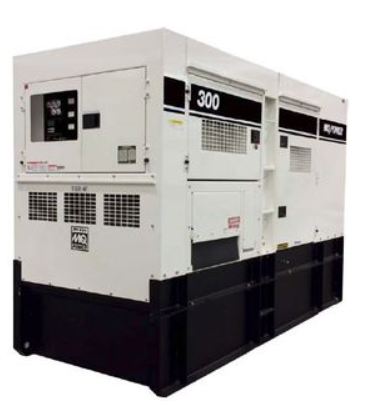

Multiquip MQ DCA400SSI4F3B Generator 400kVA Three Phase Isuzu T4F Basler
Multiquip | Super Silent - Single/Three Phase
MQ Power WhisperWatt Super-Silent — 400 kVA Single/Three-Phase Diesel Generator (Isuzu). The DCA400SSI4F3 delivers a prime rating of 320 kW (400 kVA) and standby of 336 kW (420 kVA) from a Tier 4 Final Isuzu diesel. Patented open-delta winding for precise voltage control; electronic governor holds frequency to ±0.25%. E-coat primer with polyurethane enamel finish over weatherproof steel housing keeps operating noise to 69 dB(A); auto start-stop for remote operation. This unit is configured with the Basler DGC2020 controller.
Unit Specifications
| Prime Rating | 320 kW / 400 kVA |
| Standby Rating | 336 kW / 420 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V switchable |
| Generator Design | Revolving field, self-ventilated, drip-proof, single bearing; brushless with AVR; 4-pole |
| Sound Level | 69 dB(A) |
Engine Specifications
| Make / Model | Isuzu |
| Emissions | EPA Tier 4 Final Certified |
| Starting System | Electric |
| Design | 4-cycle, water-cooled, direct injection, turbocharged, EGR, DOC & SCR |
Available Options
Tandem-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, parallel control panel, crankcase vent blanket with heating element, battery charger, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailer: TRLR400XF3DAE (3-axle, electric brakes, 350-gallon tank).
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
