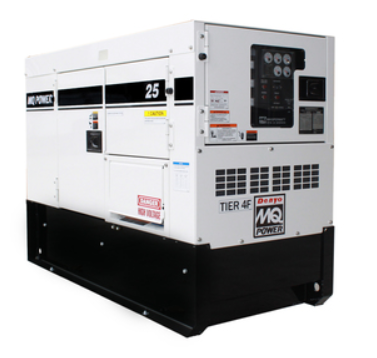

Multiquip MQ DCA25SSIU4F Generator 25kVA Three Phase Isuzu Tier 4 Final Env
Multiquip | Super Silent - Single/Three Phase
MQ Power WhisperWatt Super-Silent — 25 kVA Single/Three-Phase Diesel Generator. The DCA25SSIU4F delivers a prime rating of 20 kW (25 kVA) and standby of 22 kW (27.5 kVA). A patented open-delta winding gives precise voltage control and strong motor-starting; an electronic governor holds frequency to ±0.25% from no load to full load. The e-coated, powder-coated weatherproof steel enclosure keeps operating noise to 65 dB(A), with an integrated 24-hour fuel tank and fluid containment.
Unit Specifications
| Prime Rating | 20 kW / 25 kVA |
| Standby Rating | 22 kW / 27.5 kVA |
| Generator RPM | 1800 |
| Voltage - Three Phase | 208, 220, 240, 416, 440, 480V switchable |
| Voltage - Single Phase | 120, 127, 139, 240, 254, 277V switchable |
| Sound Level | 65 dB(A) |
Engine Specifications
| Make / Model | Isuzu 4LE2T |
| Emissions | EPA Tier 4 Final Certified |
| Design | 4-cycle, water-cooled, direct injection, turbocharged, EGR |
| Starting System | Electric |
| Gross Engine Power | 40.2 bhp / 30 kW |
| Fuel Tank Capacity | 41.7 gal / 158 L (24-hour tank) |
Dimensions & Weights
| Dry Weight | 1,795 lb / 814 kg |
| Wet Weight | 2,137 lb / 969 kg |
| Max Lifting Point Capacity | 5,150 lb / 2,335 kg |
Available Options
Tandem/single-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, crankcase vent blanket with heating element, battery charger, water heater, emergency stop, low coolant level shutdown, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailers: TRLR25US2 (single unit) or TRLR75XF2 100-gallon extended-fuel trailer.
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
