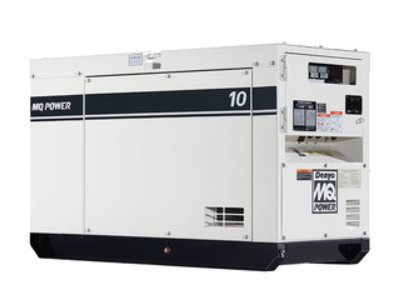

Multiquip MQ DCA10SPX4 Generator 10kW Single Phase Kubota Tier 4 Final
Multiquip | Super Silent - Single Phase
MQ Power WhisperWatt Super-Silent — 10 kW Single-Phase Diesel Generator. The DCA10 is a 10 kW single-phase generator with 1.0 power factor and 120/240V output. Electronic governor control, an easy-to-read analog panel, and a lockable sound-attenuated weatherproof steel housing with single-point lifting eye. Easy-maintenance design gives quick access to all filters and drain extensions.
Unit Specifications
| Prime Rating | 10 kW |
| Standby Rating | 11 kW |
| Generator RPM | 1800 |
| Voltage - Single Phase | 120/240 V |
| Generator Design | Revolving field, self-ventilated, drip-proof, single bearing |
| Voltage Regulation | ±0.5% |
| Power Factor | 1.0 |
| Excitation | Brushless with AVR |
| No. Poles | 4-pole |
| Frequency | 60 Hz |
| Sound Level (Full Load at 23 ft.) | 61 dB(A) |
Engine Specifications
| Make / Model | Kubota D1503 |
| Emissions | EPA Tier 4 Certified |
| Starting System | Electric |
| Design | 3-cylinder, 4-cycle, water-cooled, swirl chamber |
| Gross Engine Power | 24.5 bhp / 18.3 kW |
| Fuel Tank Capacity | 16.4 gal / 62 L |
Available Options
Tandem/single-axle trailer (electric or hydraulic brakes), PowerBalance™ automatic load management, crankcase vent blanket with heating element, battery charger, water heater, emergency stop, low coolant level shutdown, camlocks, audible alarm, and custom subbase fuel tanks. Matched trailer: single-axle multipurpose, with optional integral 28-gallon fuel cell.
Specifications from Multiquip published data and subject to change without notice. Refer to the model data sheet for complete details.
