Cummins C70D2RE 70 kW Towable Diesel Generator - Tier 4 Final
C70D2RE - 70 kW / 63 kW, 60 Hz. 70 kW trailerized diesel generator set with PowerCommand® 3.3 control, selectable three-phase and single-phase voltages, and full paralleling capability. 131-gallon base tank gives 29 hours at 75% load, with 110% fluid containment built into the skid.
70 kW trailerized diesel generator set with PowerCommand® 3.3 control, selectable three-phase and single-phase voltages, and full paralleling capability. 131-gallon base tank gives 29 hours at 75% load, with 110% fluid containment built into the skid.
Specifications
| Standby / Prime output | 70 kW / 63 kW, 60 Hz |
| Voltage | 208/240/480V three phase, 240V single phase |
| Engine | Cummins QSB5-G11, 4.5 L (272 in³) |
| Alternator | PMG exciter, Class H insulation, 400 A breaker |
| Controller | PowerCommand® 3.3, paralleling capable |
| Fuel tank | 131 gal - 29 hours at 75% load |
| Sound level | 68 dB(A) at 7 m |
| Dimensions (L x W x H) | 121 x 50 x 77 in |
| Weight | 5,070 lb dry / 6,070 lb with fuel |
| Trailer | 225/75R15 tires |
| Containment | 110% complete engine fluid containment reservoir |
| Emissions | U.S. EPA Tier 4 Final |
Factory stock is held in Fridley, MN and typically ships 5-7 business days from order placement. Freight is included on units shipping from Fridley.

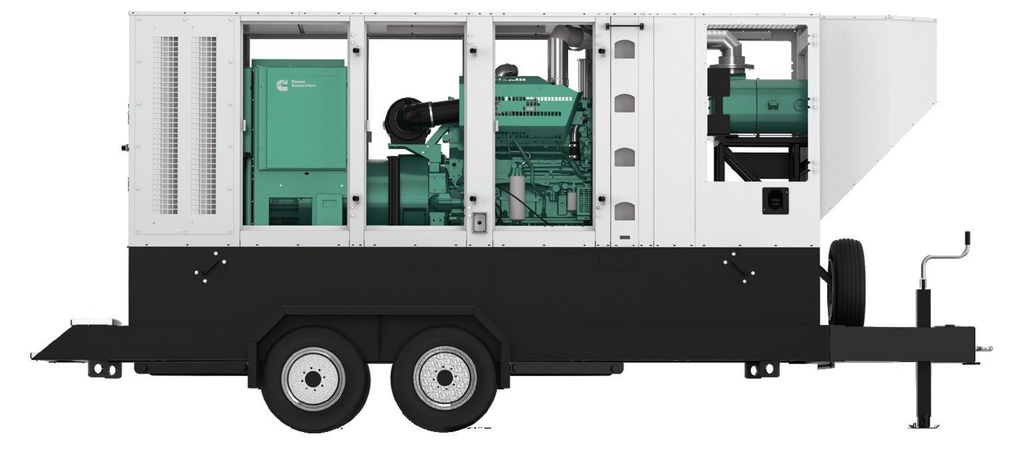

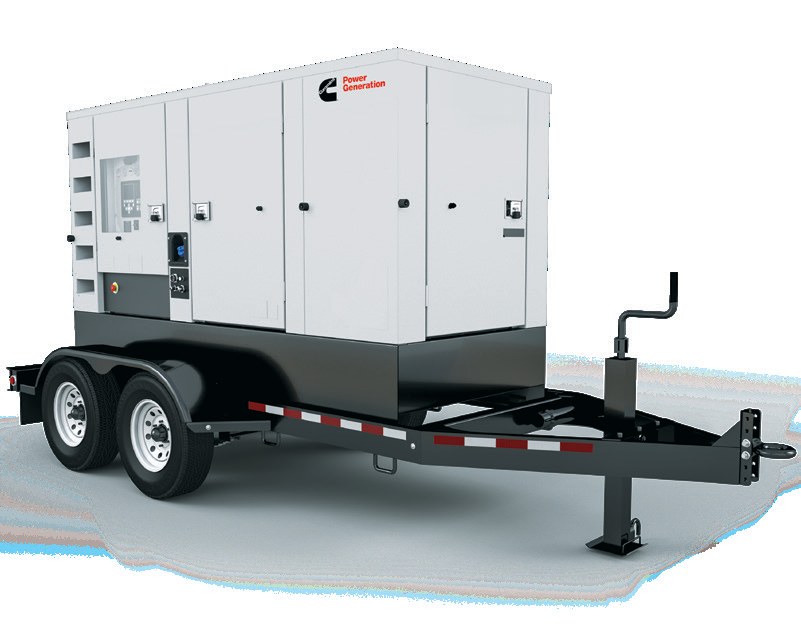

Images shown are Cummins reference photography and may not reflect the exact configuration, trailer or options of the unit supplied. Refer to the spec sheet above for verified dimensions and ratings.
