Cummins C12D6RE 12 kW Towable Diesel Generator - Tier 4 Final
C12D6RE - 12 kW / 10.8 kW, 60 Hz. Compact 12 kW single-phase towable diesel generator in a sound-controlled, weatherproof enclosure rated from -20°F to 120°F. Single-side service door, self-diagnostics with maintenance reminders, and 29.5 hours of runtime at 75% load on a 26-gallon tank.
Compact 12 kW single-phase towable diesel generator in a sound-controlled, weatherproof enclosure rated from -20°F to 120°F. Single-side service door, self-diagnostics with maintenance reminders, and 29.5 hours of runtime at 75% load on a 26-gallon tank.
Specifications
| Standby / Prime output | 12 kW / 10.8 kW, 60 Hz |
| Voltage | 120/240V single phase (100/50 A) |
| Engine | Kubota D1503-M, 1.5 L (91.4 in³) 4-cycle liquid-cooled diesel |
| Alternator | Brush type, 4 pole, drip proof, revolving field |
| Fuel tank | 26 gal - 29.5 hours at 75% load |
| Fuel consumption | 1.15 gal/hr at full prime load |
| Sound level | 62 dB(A) at 20 ft, half load |
| Dimensions (L x W x H) | 101 x 71 x 48.5 in |
| Weight | 1,801 lb dry / 2,017 lb wet |
| Trailer | Single axle, ST205/75R15 |
| Emissions | U.S. EPA Tier 4 Final (nonroad) |
| Warranty | 3 years / 3,000 hours |
Factory stock is held in Fridley, MN and typically ships 5-7 business days from order placement. Freight is included on units shipping from Fridley.

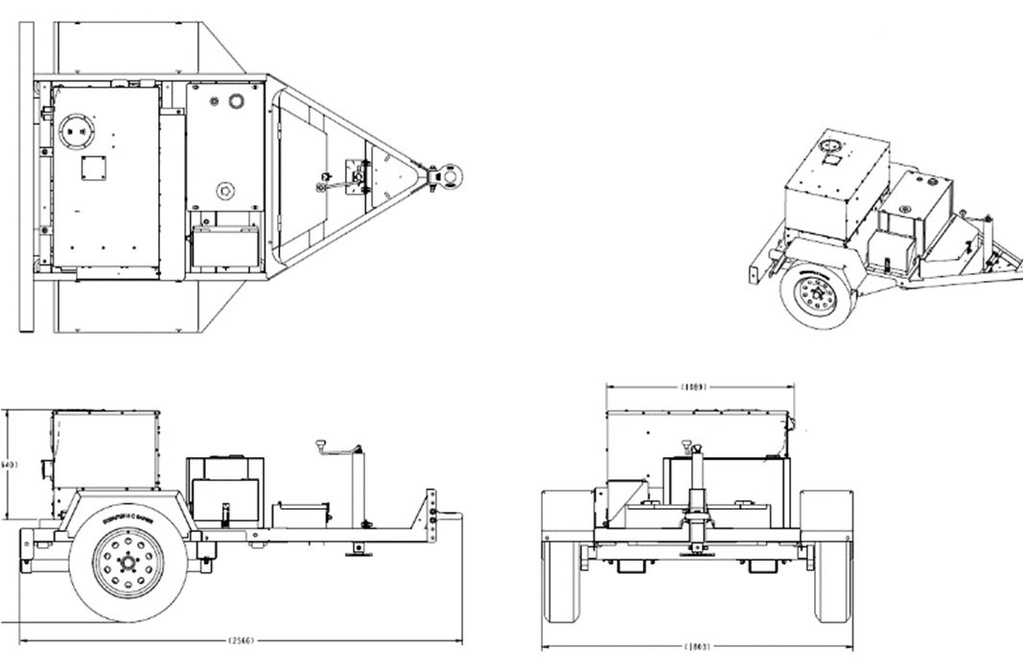

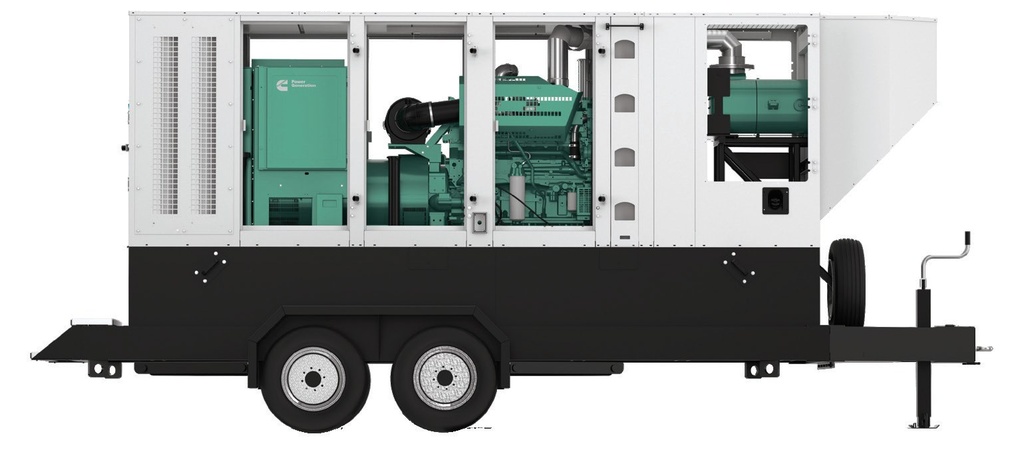

Images shown are Cummins reference photography and may not reflect the exact configuration, trailer or options of the unit supplied. Refer to the spec sheet above for verified dimensions and ratings.
