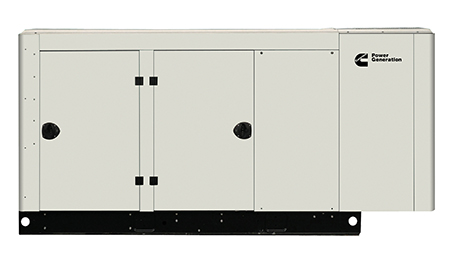

Cummins C80D6 80kW Diesel Home Standby Light Commercial Generator A063P969
80.0kW, 120/240 V, 1-Phase, 60 Hz, 333.3 Amps, 1800 rpm, 8 lead alternator, PCC1.1 two-wire start control, 125-400 Amp adjustable circuit breaker, coolant heater, 74.6 dB(A), quiet site I enclosure with self-contained engine mounted muffler, 6 amp battery charger. No Fuel Tank.
The C-D6 diesel range is a fully integrated standby package for homes and light commercial sites where diesel is the right fuel — no gas service, long unattended run time, or a requirement for on-site stored fuel. A rugged 4-cycle liquid-cooled industrial diesel engine drives a Cummins alternator under PowerCommand® control inside a sound-attenuated, weather-protective aluminum enclosure.
Features and benefits
- Engine. Rugged 4-cycle industrial diesel delivering reliable power and fast response to load changes.
- Alternator. Several sizes offer selectable motor starting, with low-reactance 2/3 pitch windings, low waveform distortion under non-linear loads, and fault-clearing short-circuit capability.
- PowerCommand® 1.1 control, standard. Total system integration including automatic remote start/stop, precise frequency and voltage regulation, alarm and status message display, output metering, and auto-shutdown at fault detection.
- Cooling. Standard package runs reliably to 122 °F (50 °C) ambient, and coolant heaters come standard for starting well below freezing.
- Enclosure. One of the quietest generators of its kind; aluminum plus durable powder-coat paint gives the best anti-corrosion performance.
- Tanks and listings. Two dual-wall sub-base fuel tank series are offered to meet diesel fuel tank code requirements; UL 2200 listed and U.S. EPA certified.
