WINCO 10 Amp Battery Charger 12V

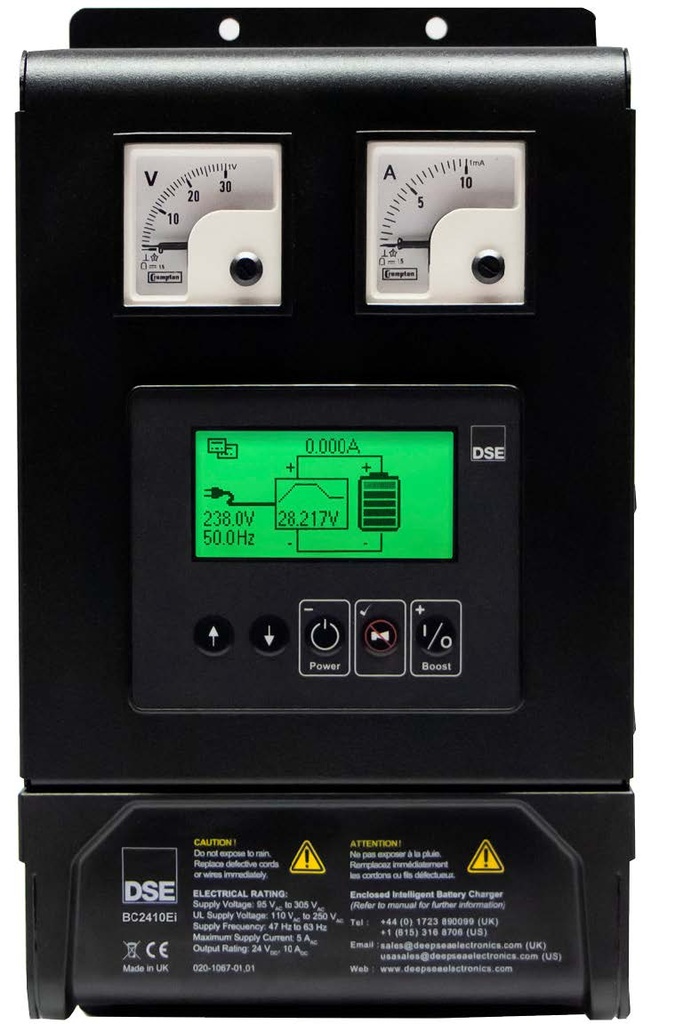

The DSEBC2410Ei is designed to work with multiple battery types. This model can be used as a battery charger, power supply, or both, and multiple chargers can be installed in parallel. Analog voltmeter and ammeter along with LCD display allow easy monitoring of the charging system. A battery failure
Product Features
The DSEBC2410Ei is designed to work with multiple battery types. This model can be used as a battery charger, power supply, or both, and multiple chargers can be installed in parallel. Analog voltmeter and ammeter along with LCD display allow easy monitoring of the charging system. A battery failure contact is linked to the digital genset controller to indicate a loss of power to charger. This charger is required for NFPA110 applications.
Specifications
| Voltage | 12/24V DC |
| Amps | 10 |
| Input AC Voltage | 90-305V 48-64Hz |
| Operating Temp Range | -30C through +55C |
| Housing Material | Metal |
| Temp Sensor Input | PT1000 |
| Charge Failure Relay | 3A @ 30V DC |
| Battery Type | 12/24V |
| Protections | Short CircuitOver VoltageOver CurrentReverse PolarityOver TempBattery Charger Failure |
| Energy Saving | Yes, Eco-Power |
| Ingress Protection | IP67, 100% Waterproof |
| Compliance | NFPA110 |
| Monitor Display | LDC Display |
| Fault Detection | Yes |
| Dimensions | 6.5" x 4.3" x 12" |
