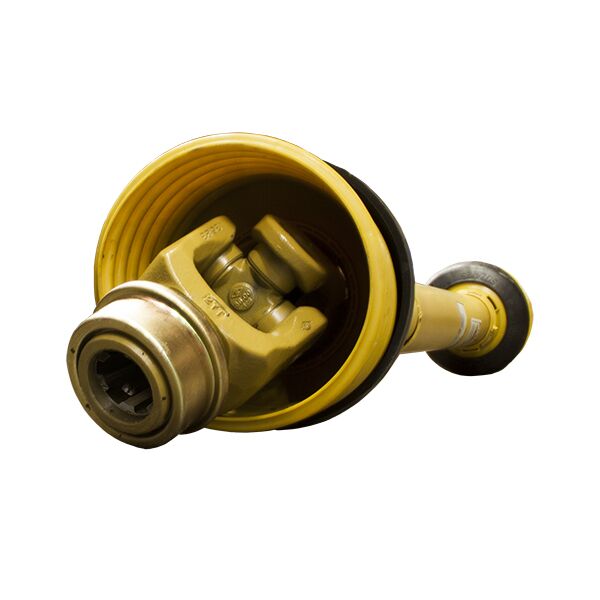

WINCO 54327-000 TPH260 Shaft
90 HP PTO Shaft with 540 RPM Operating Speed For TPH260
1 3/8″ 6 Spline x 1 3/8″ 6 Spline
Documents
Product Features
90 HP PTO Shaft with 540 RPM Operating Speed For TPH260
1 3/8″ 6 Spline x 1 3/8″ 6 Spline
Specifications
| Power Rating | 29 – 50 kW |
| Operating Speed | 540 RPM |
| Connections | 1 3/8" 6 spline x 1 3/8" 6 spline |
| Shaft HP Rating | 90 HP |
| Operating Length | Min: 37.6"Max: 53.50" |
| Overall Length | Min: 47.48"Max: 66.48" |
| Weight | 40 lbs. |
