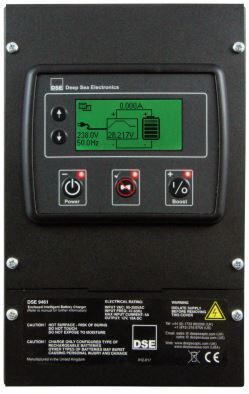

WINCO 10 Amp Battery Charger 24V
The 10A DSE9461 can be programmed for different charging curves to maximize the life of the battery using a 3-stage charging profile with adjustable current limit (max 10A). This model can be used as a battery charger, power supply or both at the same time. Analog voltmeter and ammeter along with LC
Product Features
The 10A DSE9461 can be programmed for different charging curves to maximize the life of the battery using a 3-stage charging profile with adjustable current limit (max 10A). This model can be used as a battery charger, power supply or both at the same time. Analog voltmeter and ammeter along with LCD display allow easy monitoring of the charging system. A battery failure contact is linked to the digital genset controller to indicate a loss of power to charger. This DSE9461 is required for NFPA110 applications.
Specifications
| Voltage | 12/24V DC |
| Amps | 10 |
| Input AC Voltage | 90-305V 48-64Hz |
| Operating Temp Range | -30C through +55C |
| Housing Material | Metal |
| Temp Sensor Input | PT1000 |
| Charge Failure Relay | 3A @ 30V DC |
| Battery Type | 12/24V |
| Protections | Short CircuitOver VoltageOver CurrentReverse PolarityOver TempBattery Charger Failure |
| Energy Saving | Yes, Eco-Power |
| Ingress Protection | IP67, 100% Waterproof |
| Compliance | NFPA110 |
| Monitor Display | LDC Display |
| Fault Detection | Yes |
| Dimensions | 6.5" x 4.3" x 12" |
