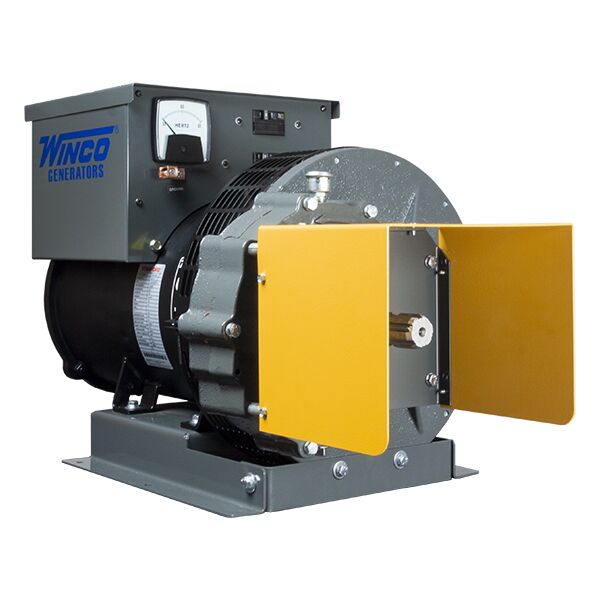

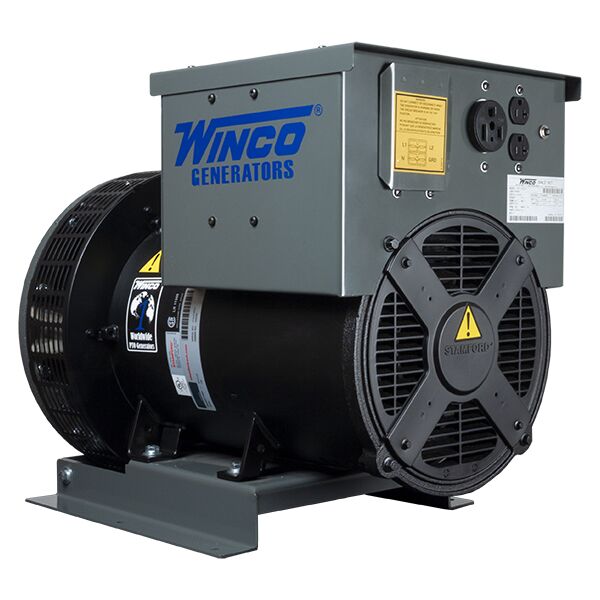

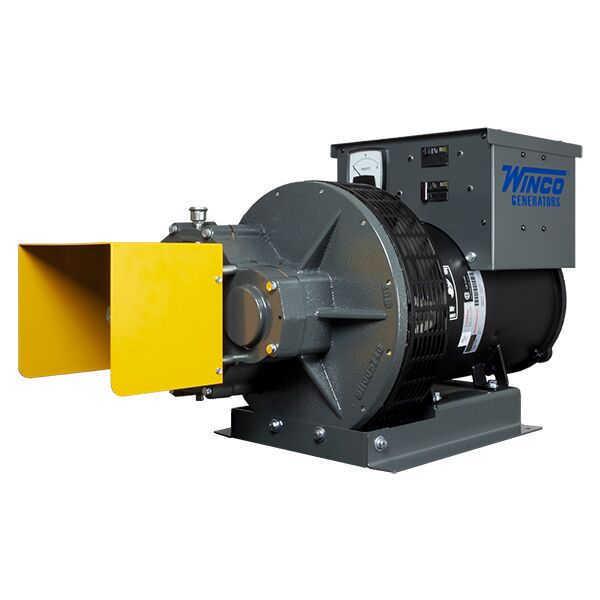

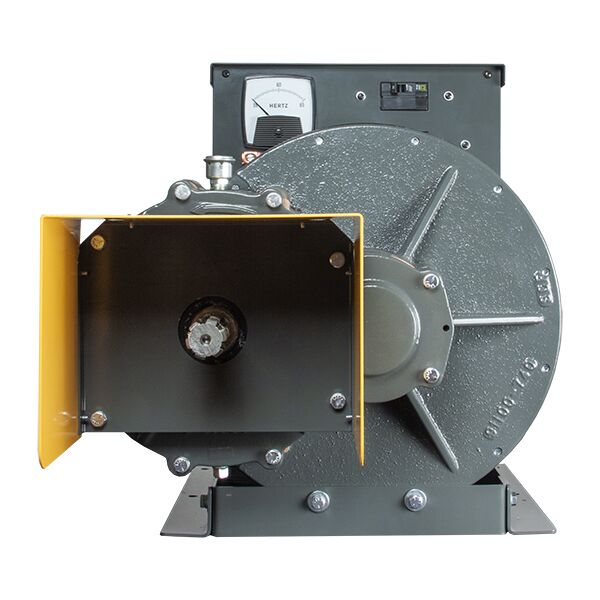

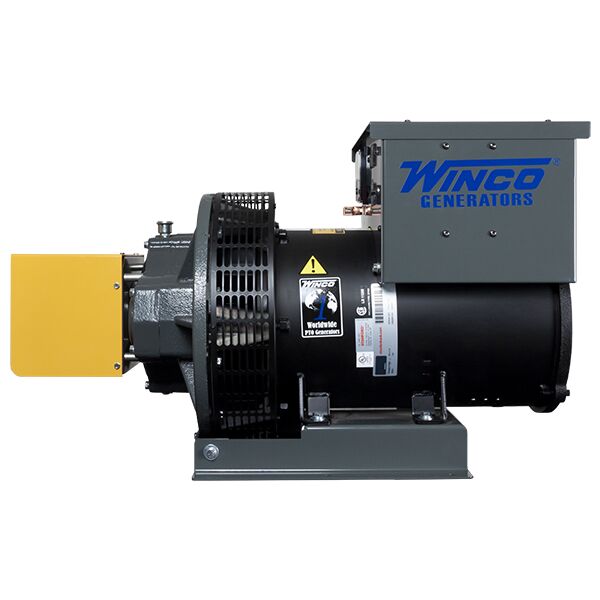

WINCO 30PTO 120/208V 3-PH 540 RPM
WINCO has been building PTO generators since 1950. Our 50PTO has been redengineered with top quality components, including our in-house designed gearcase.
Product Features
Rugged Design
Low Harmonic Distortion
Frequency Meter
Premium Circuit Breakers
Protective PTO Shield
5-Wire Anderson Full Power Plug Included
100% Load Tested
Specifications
| Standby Watts | 31,600 |
| Standby Amps | 87 @ 1.0 PF/ 109 @ 0.8 PF |
| Continuous Watts | 26,900 |
| Continuous Amps | 71 @ 1.0 PF/ 102 @ 0.8 PF |
| Voltage Output | 120/208 Volt Three Phase |
| Voltage Regulation | AVR (Automatic Voltage Regulator) |
| 120V Receptacles | (2) NEMA 5-20 20A |
| 120/240 Anderson Connector | 175 Amps |
| 240V Receptacles | (1) NEMA 6-50R 50A |
| PTO Shaft | 1 3/8" 6-spline540 RPM |
| Dimensions | 37" x 21" x 24.3" |
| Shipping Weight | 472 lbs. |
| Unit Warranty | 3 Years |
| Assembled In | USA |
